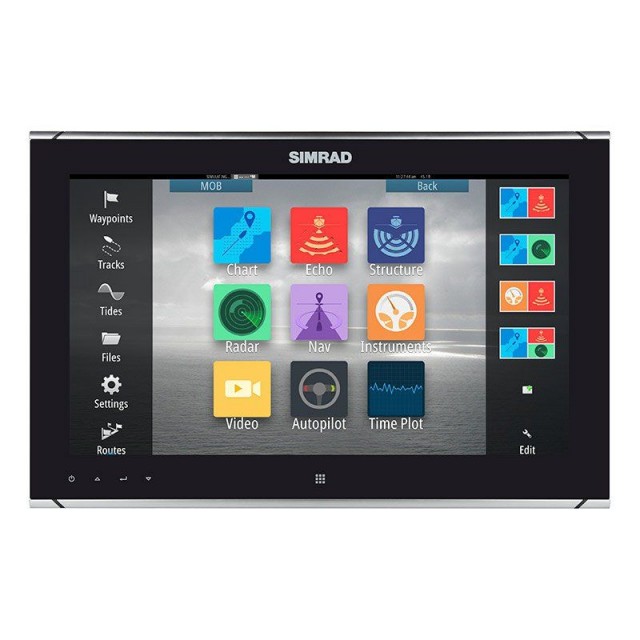

Simrad MO16-T Multi-touch Widescreen 15,6” Monitor 000-11260-001

Designed for cruising yachts, center consoles and sportfishing boats, the Simrad MO16-T widescreen monitor maximizes view while minimizing dash space. The MO16-T is suited for glass bridge installations and is multi-touch enabled.
Key Features
- 1000 nits Hi-Bright, Sunlight Viewable Screen
- Multi-touch Touchscreen ControlSmart, 8mm Low Profile All Glass Design Enhances Look of Helm
- Large Screens with Best-In-Class Screen to Case Ratio
- HDMI, DVI, Composite Inputs
- Easy to Install with ‘Mount From Front’ option
- Includes Both Black and Sliver Trim Accent Color Options
- Suitable for Any Monitor Application
- Picture in Picture and On-Glass Menu Keys
- Hi-bright, 1000 nit, multi touch touchscreen models for viewing in direct sunlight
- Large Screens with small cases to display information needed while minimizing dash footprint
- Low 8mm flush mount profile for attractive, glass bridge installations
- ‘Mount from front’ option reduces installation time and cost
- HDMI, DVI and Composite inputs allow for use in a variety of installations and applications
- Picture in Picture insert can be sized and positioned to meet individual tastes and preferences
- On-glass menu keys for easy set-up and configuration
- Includes both sliver and black trim accent colors to complement the helm and dash of any boat design
- Designed for use in NSO evo2 installations and equally suited for 3rd party monitor applications
- IPx6 (when flush mount installed) and +5- to 131-degree


Power
Power Consumption: 20W
Power Supply (Supply Voltage): 12/24V
Display
Display Resolution [pixels x pixels]: 640x480, 800x600, 1024x768, 1280x720, 1280x800, 1280x1024, 1366x768
Technical/Environmental
Product Width: 15.7” / 400mm
Product Depth: 2.9” / 74mm
Product Height: 10.2” / 260mm

Simrad 000-11260-001.
