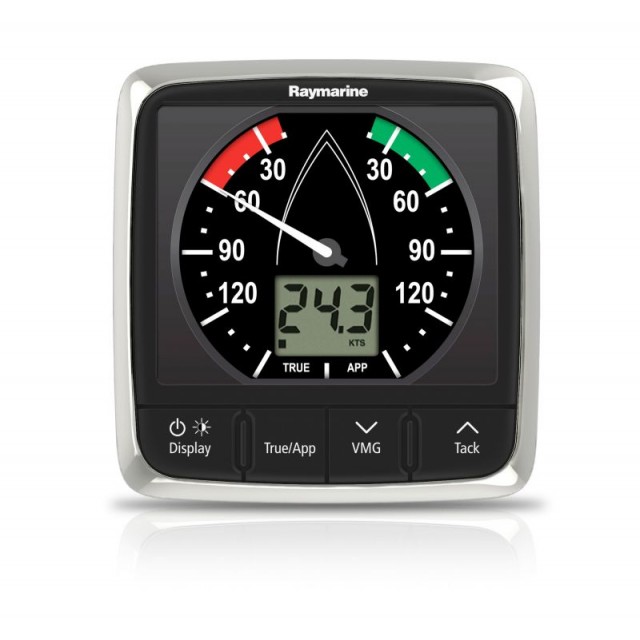

Raymarine i60 Wind Digital Display E70061

Stylish displays for sailboaters!
The i60 instruments are designed to complement the all new Raymarine multifunctional displays. Designed specifically for sailboaters, these stylish, dedicated-function instruments cover wind and close-hauled wind options in analogue and digital formats.
Excellent viewing angles for both day and night conditions and simple, push-button controls make i60 instruments extremely easy to see and use. They are also simple to install thanks to the front-mount design.

Key Features
• Large numerals and digits.
• Red back lighting for enhanced night time visibility.
• SeaTalk and SeaTalkng interfaces.
• NMEA 2000 (compatible) interface.
• Built-in transducer interface.
• 110 mm x 115 mm footprint identical to older Raymarine ST60+ instrumentation.
• Low power consumption.
• Multiple data source support eliminates potential data conflicts.
• Front mounted design for simple installation.

i60 Wind
Analogue and digital data.
Calculates apparent (relative) and true wind speed/angle (true wind requires SeaTalk speed through water data).

Dati tecnici:
Nominal Voltage: 12V DC;
Operating Voltage Range: 10 - 16V DC;
Power Consumption: typically Current Consumption: 45 to 65mA (display only) and 200mA maximum with transducer connected;
Operating Temperature Range: -20ºC to +55ºC;
Storage Temperature: -30ºC to +70ºC;
Relative Humidity: up to 93%;
Waterproofing Standard: IPX6;
Connections: 2 x SeaTalkng and transducers;
Compatible with marine industry CAN systems;
Conformance: Europe 2004/108/EC.

Confezione:
1 i60 instrument;
2 Front bezel;
3 SeaTalk to SeaTalkng adaptor cable;
4 SeaTalkng spur cable;
5 Gasket;
6 Sun cover;
7 Documentation pack;
8 SeaTalkng blanking plug;
9 4 x fixing screws.
Raymarine model E70061.
