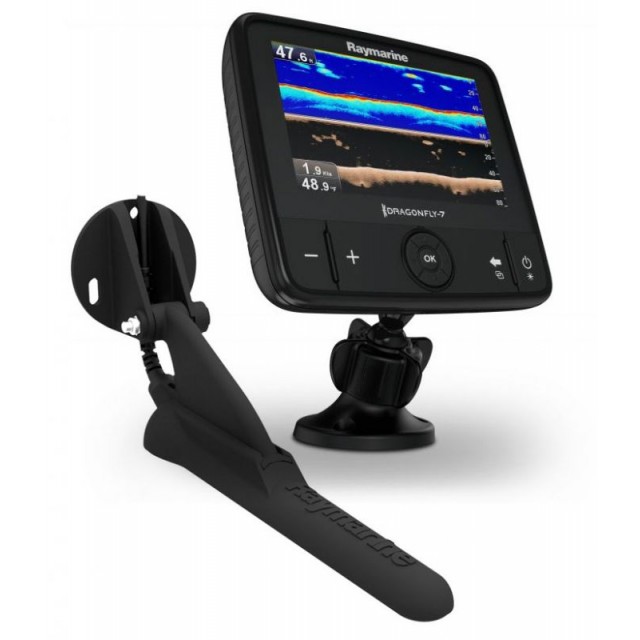

Nautička Navigacija Raymarine Dragonfly 7PRO Display 7” sa CHIRP DownVision Sonar CPT-DVS Wi-Fi

Nautička Navigacija Raymarine Dragonfly 7PRO Display 7” sa CHIRP DownVision Sonar CPT-DVS Wi-Fi
Nautička Navigacija Raymarine Dragonfly 7PRO Display 7” sa CHIRP DownVision Sonar CPT-DVS Wi-Fi

Dragonfly Features
Superior Fishing Electronics Made Incredibly Simple By Raymarine
hange your underwater view and catch more fish with the Dragonfly 4, 5 and 7 wide-spectrum CHIRP DownVision™ technology. Easily identify fish and underwater objects with photo-like sonar images. Dragonfly’s all-weather, high-definition color LCD display looks sharp from every angle. Step up to a smarter species of sonar with Dragonfly.

The Dragonfly Difference
A leap into the future of sonar, Dragonfly sonars employ true wide spectrum CHIRP technology. With wide spectrum CHIRP more sonar signals are transmitted into the water, allowing Dragonfly to interpret more detail, target more fish, and image structure with unmatched clarity.

CHRIP DownVision™ - Simply The Best Imaging Sonar
CHIRP DownVision™ will change your underwater view with incredibly clear, photo-like sonar images. Dragonfly’s CHIRP DownVision™ surpasses ordinary imaging sonars with superior deep water performance to 600ft (180m) and reliable high speed bottom tracking.

A Better View
Each Dragonfly is engineered with optical bonding LCD display technology. Once only available on high end marine displays, Dragonfly’s all weather optically bonded displays deliver brighter colors, sharper contrast, and are guaranteed to never fog up.

Connect & Share Wirelessly
Dragonfly PRO models feature built in Wi-Fi. Anglers can stream Dragonfly sonar data right to their smartphone or tablet with the Raymarine Wi-Fish™ mobile app. The Wi-Fish mobile app puts Dragonfly sonar vision right in the palm of your hand, plus you can rewind and capture sonar images to share online with friends.

Dragonfly PRO Now Compatible with Navionics Boating App and SonarChart™ Live
Generate up-to-date bathymetric charts on the fly with your Dragonfly PRO or Wi-Fish and the Navionics SonarChart™ Live app. Stream sonar to the Navionics Boating app and enjoy live sonar on your phone or tablet as you create your own personal bathymetric chart. Sonar Logs can also be updated to Navionics.com which are used to create SonarChart™ updates for Navionics cartography.
Navionics Boating with SonarChart™ Live is available now for Apple iOS devices, and Android.

The Best Maps
Dragonfly models with GPS built in give you the choice of Navionics, C-MAP by Jeppesen or Raymarine LightHouse compatible charts.

Superior Sonar
Unlike conventional imaging sonars that transmit at a single frequency with each pulse, Dragonfly’s DownVision™ sonar uses CHIRP technology to transmit across a wide spectrum of sonar frequencies simultaneously – the result is much higher-resolution, life-like sonar images.

Dual-Channel CHIRP
CHIRP DownVision™ plus a CHIRP-powered fish targeting channel for conventional sonar imagery.
Dual-channel sonar is available on all Dragonfly models except the Dragonfly 4DV

Mount Anywhere
The Dragonfly 4, 5 and 7's compact ball-and-socket mounting system makes installation simple. The mount is easy to upgrade to after market ball-and-socket mounting systems.

Features:
Screen size: 7"
Screen resolution (pixels): 800X480
CHIRP Sonar: Yes
CHIRP DownVision™: Yes
All weather viewable: Yes
Raymarine WiFish app: Yes
Android and iOS Compatible: Yes
Save and Share Screenshots: Yes
Built in GPS: Yes
LightHouse Chart Compatibility: Yes
Navionics Chart Compatibility: Yes
Navionics SonarChart & Boating App Compatible: Yes
C-MAP Chart Compatibility: Yes
MicroSD Card Reader: Yes
Dual Channel Sonar: Yes
Depth Range: 183m (600ft) CHIRP DownVision™ and CHIRP Sonar Models 275m (900ft)
Nominal Supply Voltage: 12V
Operating Voltage Range: 10.8 V DC to 15.6 V DC
Power Consumption At Full Brightness: 9W RMS
Connections: Power / Transducer combined input
Waterproofing Standard: IPX6 and IPX7
Dispaly Aspect Ratio: 15:9

GPS & CARTOGRAPHY
GPS Channels: 72 GPS / GLONASS Channels
Chart Compatibility: LightHouse vector and raster charts | Navionics Gold, Plus, Hotmaps and SonarChart | C-MAP by Jeppesen
Waypoints: 3,000 waypoints (split between up to 100 waypoint groups)
Tracks: 15 tracks (each track can contain up to 10,000 points)
Chart Media: MicroSD

SONAR
Sonar Type: CHIRP Sonar
Sonar Channels: 2 Channels - Sonar conical beam + DownVision™ wide fan beam
Depth Range: 183m (600ft) CHIRP DownVision™ and CHIRP Sonar Models 275m (900ft)

In the box:
- Display unit
- Locking collar
- Pivot ball
- M6 Hex bolt
- Display bracket base
- x3 M5 pozi-drive bolt
- x3 M5 washer     7
- x3 M5 locking nut
- Ratchet arm
- M5 Hex ratchet bolt
- Ratchet plate
- Compression washer
- M5 washer
- M5 locking nut
- x3 Self tapping screws
- Transducer with combined power cable

Napišite recenziju

Molimo Vas prijavite se ili se registrujte da biste napisali recenziju.
90.011,60 RSD
  • Lager: Na stanju
  • Šifra proizvoda: 64520615
