Furuno GP-33 GPS Navigator Color

Furuno GP-33 GPS Navigator Color

Opis proizvoda:

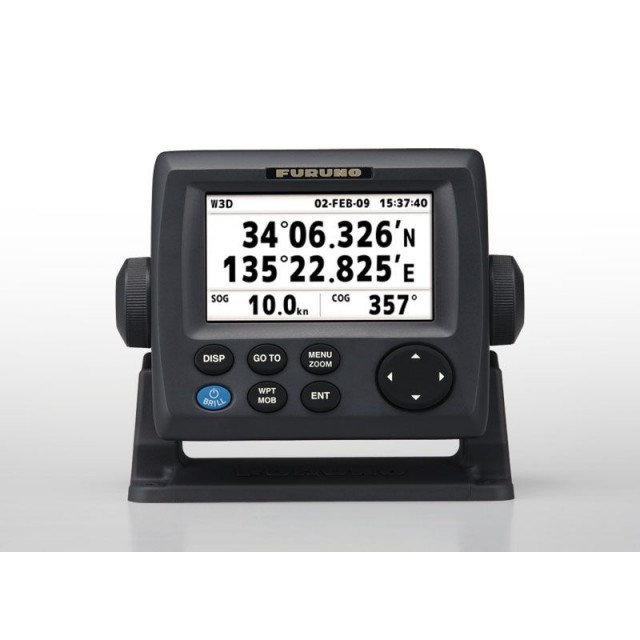

Compact in size, yet big on features and performance, the FURUNO GP33 is the perfect GPS navigator for a wide range of vessels. This advanced unit provides accurate and reliable position fixing, thanks to a super sensitive, 12-channel GPS receiver combined with integrated WAAS technology.

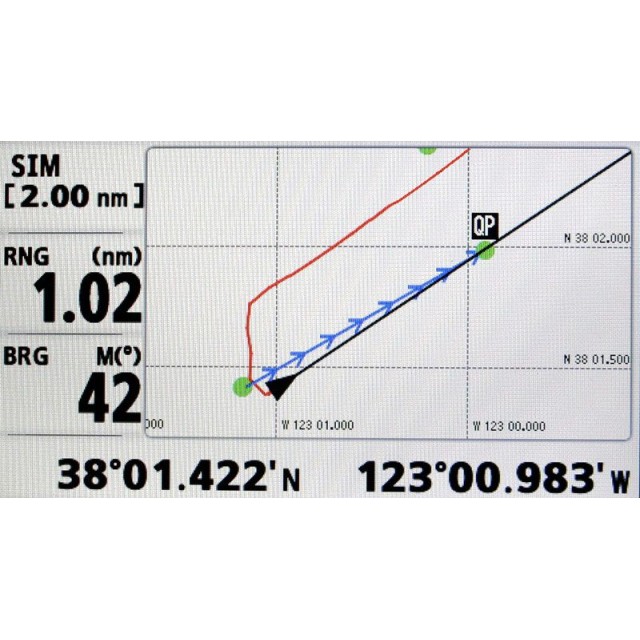

The GP33 displays navigation data in a wide variety of numerical and graphical formats. You may freely select which data you want displayed with easy to use controls. The combination of a high resolution screen and large data fields makes the screen easy to read in almost any condition.
The GP33 has a waterproof display and is built to stand up to tough marine conditions. The durable casing houses an impressive memory, capable of storing up to 3,000 points of ship’s track, 10,000 points for marks and waypoints, and 100 routes of up to 30 waypoints each. Vital navigation data is presented on a 4.3" color LCD.
The GP33 features FURUNO’s CAN bus interface system for feeding highly accurate navigation data to your NavNet 3D, radar, chart plotter, autopilot, fish finder or other navigation equipment. CAN bus is a communication protocol that shares multiple data and signals through a single backbone cable. You can simply connect any CAN bus devices onto the backbone cable to expand your network onboard. With CAN bus, IDs are assigned to all the devices, and the status of each sensor in the network can be detected. All the CAN bus devices can be incorporated into the NMEA2000 network, offering easy plug-and-play installation. NMEA0183 protocol versions are also supported.

Standard Features:

- 4.3" “Sunlight Viewable” color LCD (Brightness: 700 cd)
- Enhanced data legibility thanks to large characters and high resolution visual aid
- Stores up to 10,000 marks/waypoints, 100 routes and 3,000 track points
- 7 display modes available, including 2 user-customized modes
- Supports both NMEA0183 and NMEA 2000 compatible CAN bus interface*
- Contact closure capability available on the 10P connector
- SBAS capable for better measurement
1. SBAS is a general term for a GPS navigation system with differential correction by means of geostationary satellites. In the US, it is called WAAS (Wide Area Augmentation System), whereas in Europe and Japan, it is called EGNOS (European Geostationary Navigation Overlay System) and MSAS (MSAT Satellite-based Augmentation System), respectively.
2. GP33 comes standard with NMEA2000 Cable. Part # 000-156-405 - NMEA0183 Cable - is required option for NMEA0183 data connection.
DISPLAY
Screen Size 4.3" color LCD
Effective Display Area 95.04 (W) x 53.85 (H) mm
Pixel Number 480 (V) x 272 (H) pixels

Display Mode

Plotter, Highway, Steering, Nav Data, Satellite, User Display1, User

Display2

Memory Capacity
3,000 ship's track points
10,000 marks and waypoints with comments
100 routes, 30 waypoints/route
Alarm
Arrival, Anchor watch, XTE, Speed, WAAS, Time, Trip, Odometer
GPS/WAAS
Receiver Type
GPS: Twelve discrete channels, C/A code, all-in-view
WAAS receiver: Standard tted in display unit
Receive Frequency L1 (1575.42 MHz)
Time to First Fix Less than 90 seconds (Cold start)
Tracking Velocity 999.9 knots
Geodetic Systems WGS-84 (and others)

ACCURACY

GPS: Better than 10 m (2rdms)
WAAS: Better than 3 m (2rdms)
INTERFACE
Ports
DATA1: CAN bus
DATA2: NMEA0183 (ver 2.0, 3.0)
DATA3: RS-232C
