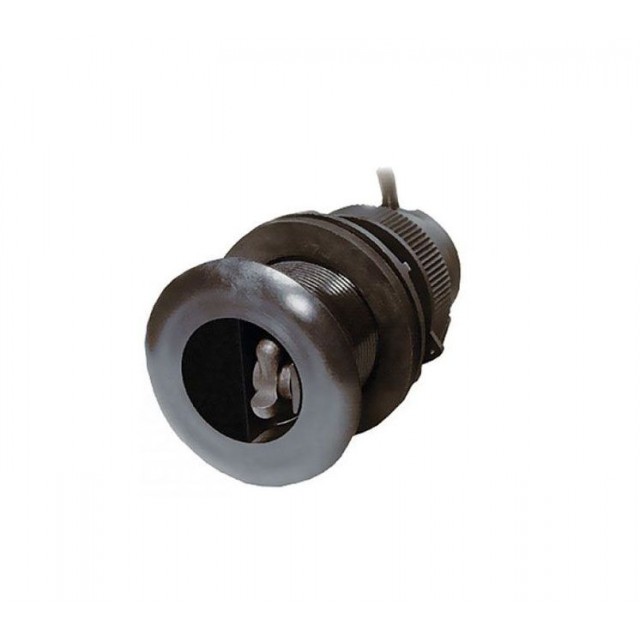

Furuno DST800 235khZ Senzor za temperaturu

Furuno OP26-29 Front mount kit for FI-70

Opis proizvoda:

Features:
- Retractable TRIDUCER® multisensor offers depth, speed, and temperature in a single, compact housing
- Patented, speed-signal-processing enhancements provide stable and high accuracy speed readings from 1 – 60 MPH
- Transducer's wide, fan-shaped, fore-aft beam is able to find bottom even when installed on steep deadrise hulls or heeling sailboats
- Depth, speed, and temperature signals are processed inside sensor and can be displayed on any radar, chart plotter, or device that accepts NMEA 0183 or NMEA 2000® data
- Smart™ Sensor with embedded microelectronics – transducer element and signal processor are only millimeters apart
- 235 kHz frequency prevents mutual interference with other echo sounders on vessel

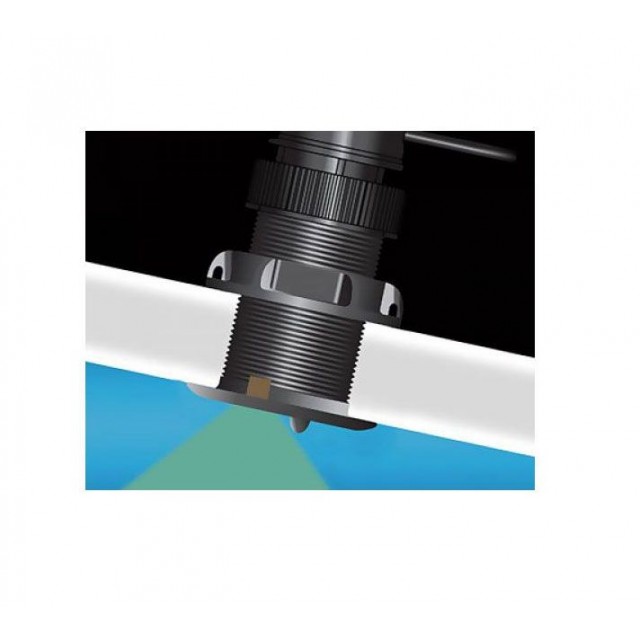

- Near-flush housing minimizes drag with only 3/16" extending outside hull
- Retractable housing with self-closing valve minimizes water flow into the vessel when transducer is removed for servicing

Specifications:
- Furuno Model No. DST-800PSF
- Mount: Thru-hull
- Housing Material: Plastic
- Connector: 5-pin NMEA 2000®
- Cable: 20 ft.
- Frequency: 235 kHz
- Cone: 10° fore / aft x 44° port / starboard
- Power: 100 Watts RMS
- Hull Deadrise: 0 - 22°
- Depth Sensor Range: 1.6 - 230 ft.
- Temperature Sensor Range: 14 - 104°F
- Data Update Rate: (1) per second
- Supply Voltage: 9 - 16 Volt DC
- Supply Current: 40 mA
- Acoustic Window Material: Urethane
- Compatible Hull Materials: Fiberglass or metal
- Hole Diameter for Installation: 2"
- Dimensions: 4.87" H x 2.94" OD
